Knob and Tube Rewiring in Troy, MI

Resolve Unsafe Wiring Issues Efficiently

Are you dealing with outdated knob and tube wiring in your home? It is vital to update your electrical system to meet safety codes, satisfy insurance providers, and improve your home’s overall functionality. Contact us today to schedule an inspection or apply for financing to secure your home immediately.

Living in Troy means maintaining a home that can withstand significant seasonal shifts, but vintage wiring often lacks the capacity to handle modern heating and cooling demands safely.

• Ensure compliance with local building codes and insurance requirements.
• Enhance home safety and electrical capability for modern appliances.
• Quick consultations and fast, professional installation.

All services come with full compliance documentation and warranty coverage.

Understanding Knob and Tube Rewiring

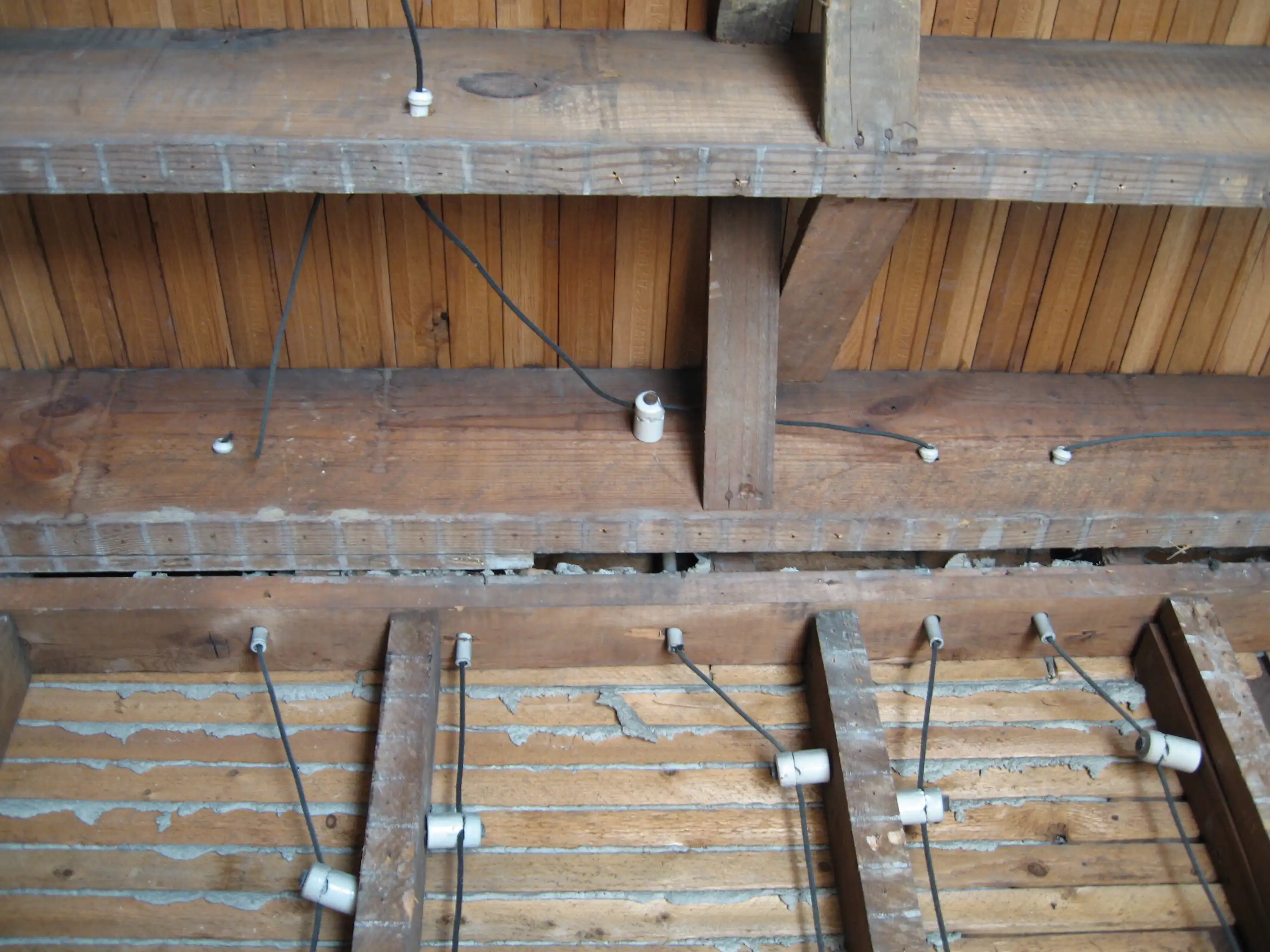

Knob and tube (K&T) wiring was the standard method for electrical installations in homes built between the 1880s and the 1940s. If your home in Troy falls into this age range and has not undergone a comprehensive electrical overhaul, there is a high probability that active K&T circuits remain behind your walls. This system consists of single-insulated copper conductors run within wall cavities or ceiling joists, passing through porcelain tubes for protection and supported by porcelain knobs. While this system was revolutionary at the time, it is fundamentally incompatible with the electrical usage of a modern household.

The primary issue with keeping this legacy infrastructure is the breakdown of insulation. Over decades, the rubberized cloth insulation that covers the copper wire becomes brittle and cracks, eventually falling off and leaving live wires exposed. This creates a significant risk of arcing and electrical fires. Furthermore, K&T systems lack a grounding wire. Grounding is an essential safety feature in modern electrical systems that directs excess electricity safely into the ground rather than through your appliances or, worse, your body. Without a ground wire, your sensitive electronics such as computers, smart TVs, and modern HVAC controls are at risk of damage from power surges.

Blue Heron Electrical approaches this issue by identifying exactly where these circuits are located and determining the most effective strategy for replacement. The goal is not just to remove old components but to bring your home up to the current National Electrical Code (NEC) standards. Homeowners often discover they have this wiring only when a home inspector flags it during a sale or when an insurance carrier issues a cancellation notice. Insurance companies frequently view K&T as an unacceptable liability due to the fire risk, often requiring removal within 30 days of a policy start date.

What to Expect During Your Rewiring Service

Rewiring a finished home is a major project, but it does not have to be a destructive one. The objective is to replace the dangerous wiring with modern non-metallic (NM) cable, often referred to as Romex, while minimizing damage to your walls and ceilings. When you commission a rewiring project, you are effectively asking for a complete surgical procedure on your home's electrical circulatory system.

Assessment and Circuit Tracing

The first phase involves a detailed audit of the electrical panel and the branch circuits. Electricians must identify which circuits are original knob and tube and which may have been updated haphazardly in previous decades. It is common to find "romex spiders," where modern wire was improperly spliced into old K&T lines hidden in junction boxes. This creates a false sense of security where an outlet looks modern but is fed by 80-year-old ungrounded wire.

Access Creation

To run new wires, technicians must gain access to wall cavities and ceiling joists. In many cases, this is achieved through small, strategic cuts in the drywall or plaster. Experienced electricians utilize flexible drill bits and "fishing" tools to pull new wires through walls without removing large sections of plaster. This technique significantly reduces the amount of patching and painting required after the electrical work is finished.

Power Interruption

Rewiring requires shutting off power to specific circuits or the entire home for periods of time. Because Troy experiences cold winters and humid summers, the service team coordinates these shut-offs to minimize discomfort. Critical systems like refrigerators or medical equipment are taken into account during the planning phase to ensure they remain powered or are down for the shortest possible duration.

Our Full-Service Knob and Tube Replacement Process

A complete replacement involves several distinct technical steps designed to ensure safety and code compliance. We do not recommend "pigtailing" or partial fixes for knob and tube, as these band-aid solutions often violate insurance requirements and do not solve the lack of grounding.

System Disconnection and Deactivation

The first physical step of the installation is de-energizing the old knob and tube wiring. It is not always necessary to rip the porcelain knobs and ceramic tubes out of the studs, which would require extensive demolition. Instead, the standard industry practice is to cut the wire at the source and at all termination points, rendering the old system dead and harmless inside the walls. This abandoned wiring poses no fire risk once it is disconnected from the electrical panel.

Running New Grounded Cabling

Technicians run new, grounded electrical cable from the main service panel to every outlet, switch, and fixture that was previously served by the K&T system. This is the most labor-intensive portion of the project. It involves drilling through studs and top plates to create pathways for the new cabling. Special care is taken to separate electrical lines from plumbing and gas lines to prevent interference or physical damage.

Device Replacement and Upgrades

Once the new cabling is in place, the old two-prong outlets and rotary switches are removed. They are replaced with modern, three-prong grounded outlets and new switches. This is also the ideal time to install Ground Fault Circuit Interrupter (GFCI) protection in kitchens, bathrooms, and basements, as well as Arc Fault Circuit Interrupter (AFCI) breakers in the panel, which provide superior protection against electrical fires.

Panel Makeover or Service Upgrade

Often, the existing electrical panel is full or outdated. Running new circuits usually requires more space in the breaker box. At this stage, Blue Heron Electrical technicians often consolidate circuits or upgrade the main service panel to 100 or 200 amps to accommodate the new dedicated circuits required for modern appliances like microwaves and air conditioners.

Testing and Verification

Before any wall is closed up, every new circuit is tested for proper polarity, grounding, and voltage drop. The system is energized, and a load test is performed to ensure the new connections are secure and capable of handling the household demand.

The Importance of Updating Your Home’s Wiring

Delaying the replacement of knob and tube wiring is a gamble with the safety of your property and the validity of your insurance policy. The primary danger stems from how the original system was designed to release heat. Knob and tube wiring was designed to be suspended in open air within wall cavities so that heat generated by the electrical current could dissipate.

The Insulation Hazard

Over the years, many homeowners in Troy have added thermal insulation (fiberglass or blown-in cellulose) to their walls and attics to combat freezing winter temperatures. When insulation is packed around the live knob and tube wiring, it traps the heat. This prevents dissipation and causes the wire to overheat, which can ignite the surrounding insulation or the wooden framing of the house. The NEC strictly forbids enveloping active knob and tube wiring in thermal insulation for this exact reason.

Inadequate Amperage Capacity

Vintage electrical systems were designed for a time when a home might have a few light bulbs and a radio. They were typically installed with 60-amp service. Today’s homes run refrigerators, dishwashers, central air conditioning, washing machines, and high-performance computers simultaneously. Using modern loads on old wires leads to chronic overheating and blown fuses. Continuous overheating makes the copper brittle and increases resistance, which creates a fire hazard.

Real Estate Transaction Obstacles

Selling a home with known knob and tube wiring is increasingly difficult. Most mortgage lenders will not approve a loan for a home with active K&T because it is uninsurable. Even if a buyer is willing to proceed, they will likely demand a significant credit to cover the cost of rewiring immediately after closing. Addressing this issue proactively preserves the equity in your home and ensures a smoother sales process.

Navigating Permits and Regulations in Troy, MI

Electrical work of this magnitude is strictly regulated to ensure public safety. In Troy, replacing knob and tube wiring is not a handyman task; it is a code-mandated construction project that requires a permit from the local Building Department.

Permit Acquisition

Before any wire is pulled, a licensed electrical contractor must file for an electrical permit. This application alerts the city that substantial alterations are being made to the property’s electrical infrastructure. This process ensures that the work is on record and will be subject to third-party verification.

Adherence to the National Electrical Code (NEC)

The rewiring must comply with the current adoption of the NEC. This includes requirements for AFCI protection in bedrooms and living areas, GFCI protection in wet areas, and tamper-resistant receptacles. The code also dictates how wires must be supported, stapled, and protected from physical damage within the walls.

Required Inspections

Once the "rough-in" is complete (wires run but walls not yet closed), a municipal inspector must review the work. They check that the new wires are sized correctly, grounded properly, and installed according to code. A final inspection occurs after the devices are installed and the system is energized. Passing these inspections provides you with official documentation that your home is safe and compliant, which is essential for insurance purposes.

Why Choose Us for Your Electrical Needs

Selecting the right contractor for a whole-home rewire is critical. You need a team that understands the structural nuances of older architecture and respects the integrity of your finished surfaces.

Minimally Invasive Techniques

We prioritize methods that reduce the need for drywall repair. By utilizing advanced fishing techniques and leveraging attic or basement access, we aim to keep your walls as intact as possible. When cuts are necessary, they are surgical and precise, making the subsequent patching process straightforward.

Code and Safety Expertise

Our team is deeply familiar with the specific amendments and enforcement practices in Troy. We handle the entire permitting process, from application to final inspection, ensuring that you never have to worry about administrative red tape or failed inspections.

Comprehensive Cleanup

Rewiring can generate dust and debris, particularly in attics and basements. We treat your home with respect, using drop cloths and dust mitigation strategies. At the end of each day, the workspace is tidied, and upon completion, we ensure the home is left in a clean, livable condition.

Transparent Communication

You will be kept informed at every stage of the process, from the initial discovery of circuits to the final labeling of your new electrical panel. We provide clear timelines and explanations for any unexpected findings behind the walls, ensuring there are no surprises regarding the scope or cost of the project.

Ready to Upgrade Your Home Safely?

Updating your electrical system is an investment in the longevity and safety of your property. If you suspect your home still relies on knob and tube wiring, do not wait for a system failure or an insurance non-renewal notice. Blue Heron Electrical is ready to modernize your home’s infrastructure.

Call us today to schedule your comprehensive wiring assessment. Contact us today.
