Installing Heated Floor Mats vs. Radiant Cable Systems in Bathroom Remodels

The Hidden Electrical Reality of Warm Bathroom Floors

When you are looking into installing heated floor mats vs. radiant cable systems in bathroom remodels, most homeowners believe the choice is purely a flooring decision. The common myth is that as long as the heating elements fit under your tile and keep your toes warm, the specific type of system does not matter. The reality is quite different. The true challenge is selecting a system that your home's existing electrical panel can actually support without constantly tripping breakers.

Choosing between pre-sized mats and custom-cut cables hinges on balancing your bathroom's layout complexity against your home's current electrical load capacity. Tackling this decision during the early fall pre-winter remodel season ensures your new system is safely wired, inspected, and fully operational before freezing temperatures arrive. If you are unsure whether your current panel can handle the extra demand, booking professional residential electrical services is the crucial first step.

Why Electrical Panel Capacity Dictates Your Floor Heating Options

Before you fall in love with the idea of a fully heated master bath, you have to look at the metal box in your basement or garage. Electric radiant floor heating systems typically draw between 10 to 15 watts per square foot of heated space. While that might not sound massive on its own, the way these systems operate changes the electrical math entirely.

Floor heating is classified by electrical codes as a "continuous load." This means the system is expected to run for three or more hours at a time. Because continuous loads generate sustained heat within the home's wiring, circuits must be sized at 125% of the total expected load to prevent wires from overheating.

Steps to understanding your panel's limits:

1. Identify your total service amperage: Most modern homes have 200-amp service, but older homes often operate on 100-amp or even 60-amp panels.

2. Calculate existing continuous loads: Your HVAC system, water heater, and major appliances already claim a significant portion of your available amperage.

3. Factor in the 125% rule: If your floor heating requires 12 amps to run, the circuit must be sized for at least 15 amps, further reducing your panel's available capacity.

4. Schedule a professional assessment: A licensed electrician must perform a formal load calculation before any heating product is purchased.

A typical pattern we see involves older properties lacking the available amperage to support these continuous draws safely. For example, one homeowner recently purchased an older home that required comprehensive electrical upgrades, including a brand-new breaker panel, just to safely add modern lighting and switches. Adding a continuous heating load to an outdated panel without an upgrade is a recipe for tripped breakers and potential fire hazards. This is why proper electrical remodeling is the foundation of any successful bathroom upgrade.

Calculating Continuous Loads in Older Homes

The National Electrical Code (NEC) defines a continuous load as any electrical draw that lasts for three hours or more. In an older home with a fuse box or an outdated breaker panel, the existing infrastructure was never designed for modern high-draw amenities. Adding a new continuous load to a panel that is already near its maximum capacity can cause main breakers to overheat and fail. A professional load calculation takes the guesswork out of this process, ensuring your panel has the mathematical headroom to support your new heated floors safely.

Heated Floor Mats: Predictable Loads for Standard Spaces

Heated floor mats are pre-manufactured rolls that consist of a fiberglass mesh backing with heating wires already woven into them at specific intervals. Because the wire spacing is predetermined at the factory, the electrical characteristics of these mats are highly predictable.

The benefits of fixed electrical loads:

• Constant wattage: The wattage per square foot is fixed, making it much easier for an electrician to calculate the exact load the mat will place on your electrical panel.

• Simplified circuit sizing: Knowing the exact total wattage upfront allows for precise breaker and wire sizing before the remodel even begins.

• Fast installation in open spaces: Mats roll out quickly, making them ideal for square or rectangular bathrooms with straightforward footprints.

However, this predictability comes with a significant limitation: layout flexibility. Pre-sized mats cannot be cut to fit around complex plumbing rough-ins, angled shower pans, or custom vanities. You can cut the fiberglass mesh to turn the mat, but you can never cut the actual heating wire. Doing so alters the electrical resistance of the wire, destroying the system and creating an immediate fire hazard.

If you are pushing through a project during the early fall pre-winter remodel season and your bathroom has a very standard, boxy shape, heated floor mats offer a predictable, easy-to-calculate solution that simplifies the electrical planning phase.

Radiant Cable Systems: Custom Layouts and Variable Power Draw

Unlike pre-manufactured mats, radiant cable systems consist of a single, continuous spool of heating wire. The installer routes this wire back and forth across the bathroom floor, typically snapping it into an uncoupling membrane or attaching it to fixing strips. This approach provides maximum layout flexibility.

Why custom layouts change the electrical math:

• Maneuverability: Cables easily navigate around angled showers, toilet flanges, and floating custom vanities where standard mats simply will not fit.

• Variable spacing: Installers can space the wires closer together or further apart depending on the desired heat output.

• Variable power draw: Because the spacing is adjustable, the electrical draw (wattage per square foot) is completely variable.

This variability is where the electrical challenge lies. If an installer decides to space the wires closer together to achieve a faster warm-up time, they are packing more wire into the same square footage. This significantly increases the heat output, but it also drastically increases the total electrical load on the circuit.

Because the load can change based on the physical installation on the floor, precise, upfront load calculations are even more critical. Your electrician and your flooring installer must be completely aligned on the intended wire spacing before the project begins. Miscommunication here often leads to a system that draws more power than the newly installed circuit was designed to handle, resulting in tripped breakers just as the early fall pre-winter remodel season wraps up.

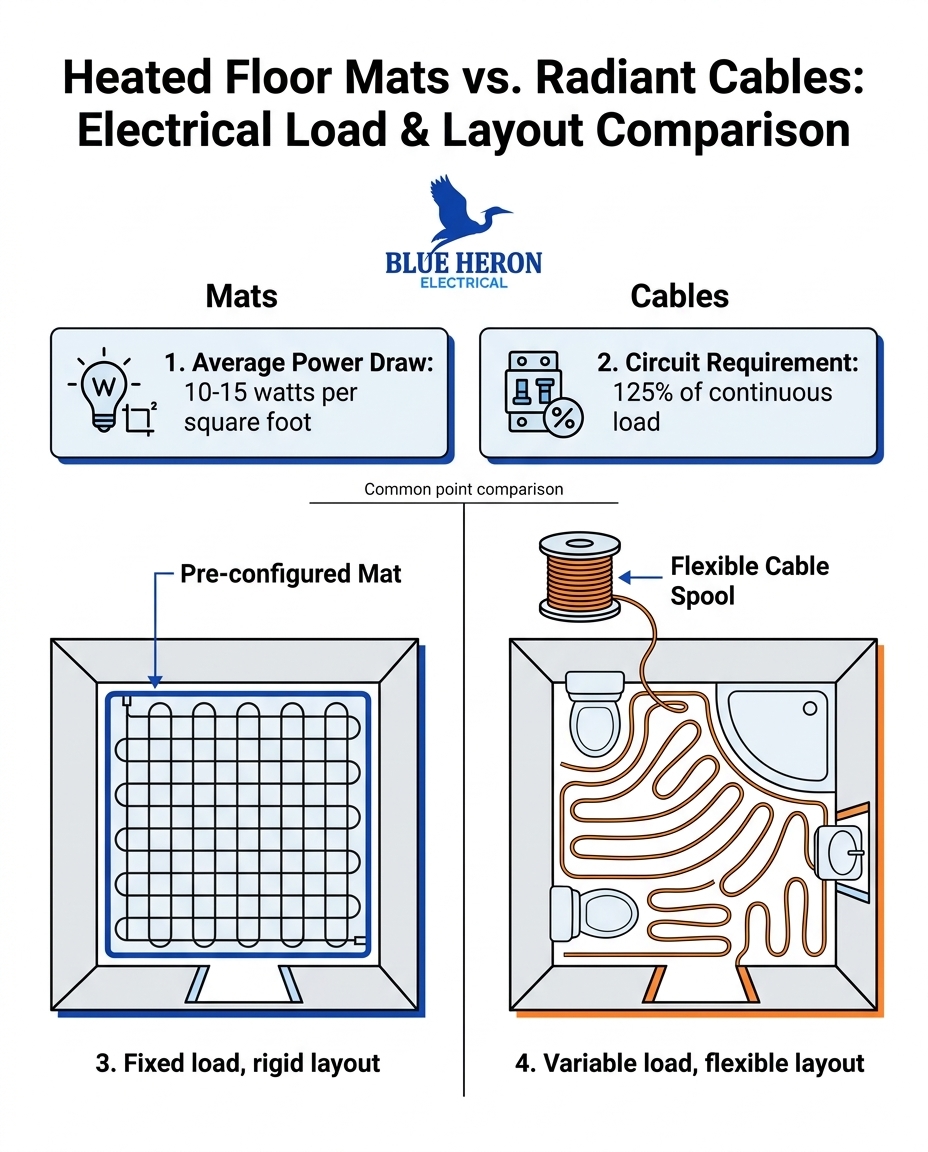

Side-by-Side Comparison: Mats vs. Cables in Freezing Climates

Making the right choice requires looking at both the physical shape of your bathroom and the electrical realities of your home. Homeowners in Sterling Heights experience freezing winters where ambient bathroom temperatures drop significantly. This increases the continuous load demand on supplemental floor heating, as the system must run longer to maintain comfortable temperatures.

• Layout Flexibility — Heated Floor Mats: Low (Best for square/rectangular rooms) — Radiant Cable Systems: High (Best for angled fixtures and complex layouts)

• Electrical Load Predictability — Heated Floor Mats: Fixed (Factory-set wire spacing) — Radiant Cable Systems: Variable (Depends on installation spacing)

• Suitability for Complex Footprints — Heated Floor Mats: Poor (Cannot cut wires to fit) — Radiant Cable Systems: Excellent (Routes easily around obstacles)

• Circuit Sizing Difficulty — Heated Floor Mats: Straightforward (Known total wattage) — Radiant Cable Systems: Complex (Requires exact spacing coordination)

When the local winter temperatures plummet, you need a system that offers reliable, continuous operation without circuit failures. Choosing the right system ensures your floors stay warm without pushing your electrical panel past its safe operating limits.

NEC Requirements: Why Dedicated Circuits Are Non-Negotiable

Regardless of whether you choose mats or cables, the safety and regulatory requirements remain the same. The National Electrical Code (NEC) strictly requires dedicated circuits for bathroom heating appliances. This means your new floor heating system must have its own breaker in the panel, and it cannot share a circuit with your bathroom outlets, vanity lights, or exhaust fan.

Key safety requirements include:

• Dedicated circuitry: Prevents overloads when high-draw devices (like hair dryers) are used while the floor heating is running.

• GFCI protection: Ground Fault Circuit Interrupter protection is mandatory for any electrical system installed in a wet environment to prevent severe shocks.

• Proper wire sizing: The physical wire running from the panel to the thermostat must be sized correctly to handle the continuous load safely.

Attempting to tie a new floor heating system into an existing bathroom outlet or lighting circuit is a severe code violation and a massive fire hazard. Working on an older home often reveals hidden limitations in the existing wiring. In one recent project, a customer needed to update their electrical box and add dedicated outlets just to support standard fixtures like a dining room chandelier safely. The exact same principle applies to high-draw heating systems.

Upgrading the electrical box or adding a dedicated circuit requires a licensed professional. Blue Heron Electrical ensures safe, code-compliant installations with proper load calculations so your new floor heating never overloads your existing bathroom circuits. For more insight into these requirements, reviewing the proper electrical for bathroom remodels can help you plan your project safely.

Frequently Asked Questions About Bathroom Floor Heating Loads

Are heated floor mats better than cables?

Neither system is universally better; the right choice depends entirely on your bathroom's layout and your electrical planning. Heated floor mats offer a predictable electrical load and faster installation in square rooms, making circuit sizing straightforward. Radiant cables provide the flexibility needed for complex layouts with angled showers and custom vanities, but require careful coordination to ensure the variable wire spacing does not overload the dedicated circuit.

Do I need a dedicated circuit for a heated bathroom floor?

Yes, a dedicated circuit is strictly required by the National Electrical Code for electric floor heating systems. You cannot tie the heating system into your existing bathroom outlets or lighting circuits. Because floor heating is a continuous load, sharing the circuit with a high-draw appliance like a hair dryer will immediately trip the breaker and create a fire hazard.

Can you cut heated floor mats to fit a bathroom?

You can cut the fiberglass mesh backing to angle and turn the mat, but you must never cut the actual heating wire. Cutting the heating wire alters its electrical resistance, which ruins the system and creates a severe electrical hazard. If a mat is too large for your space, you cannot trim it to fit; you must purchase the correct size or switch to a custom radiant cable system.

How much electricity does a radiant heated floor use?

Most electric radiant floor heating systems draw between 10 to 15 watts per square foot of heated area. The total electricity used depends on the square footage covered, the ambient temperature of the room, and how closely the wires are spaced. Because these systems run for extended periods, they are classified as continuous loads, requiring circuits sized at 125% of their total draw.

Which electric floor heating system is best for complex bathroom layouts?

Radiant cable systems are the best choice for bathrooms with complex footprints, angled walls, or numerous floor fixtures. Because the wire is unspooled directly onto the floor, the installer can route it precisely around toilet flanges, custom vanities, and curved shower pans. However, this flexibility requires exact electrical load calculations based on the final wire spacing.

How do continuous electrical loads affect my home's breaker panel?

Continuous electrical loads generate sustained heat within your home's wiring and breaker panel over several hours. To prevent overheating, electrical codes require continuous loads to only utilize 80% of a circuit's total rated capacity (the 125% rule). In older homes with limited total amperage, adding a new continuous load often maxes out the panel, requiring a professional service upgrade before installation.

Make the Right Choice for Your Bathroom and Your Electrical Panel

Choosing between pre-sized mats and custom radiant cables requires an objective look at both the physical layout of your bathroom and the hidden capacity of your home's electrical panel. A clear, objective comparison helps ensure your system operates safely and reliably through the coldest months of the year, without the frustration of tripped breakers or overloaded circuits.

Tackling this evaluation during the early fall pre-winter remodel season gives you the time needed to make necessary panel upgrades before the freezing weather sets in. A professional electrical load calculation is the necessary next step before purchasing any materials. Reach out to a local expert to evaluate your panel and explore your floor heating installation options today.
